Thermal Management System

Maintaining the optimum temperature of the battery and further temperature sensitive components can be done either with our chiller or with our heat pump system. The chiller is using an air-cooled condenser and an optional high voltage heater for heating. With our heat pump system and the intelligent controlling, we are able to reduce the energy consumption by 15-30% and thereby reduce battery size or significantly extend the driving range / working time especially in cold weather conditions.

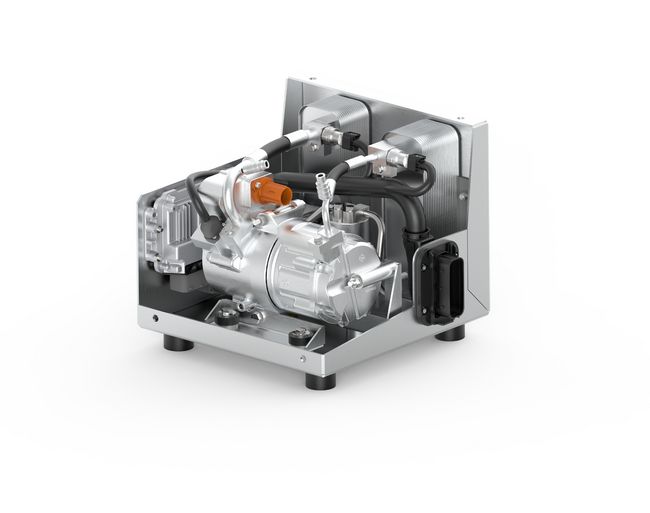

Thermal module with Heat Pump

Heat pump is a unit that works with refrigerant in a closed circuit. The refrigerant has the property to evaporate at a very low ambient temperature. During working, the refrigerant extracts heat from the ambient air or waste heat sources and gets compressed afterwards. Thereby increasing the temperature, which is circulated into the system.

AKG Product portfolio for Thermal Management Systems with Heat pump

  • Stacked Shell Cooler (SSC)
  • LightWeight Cooler
  • Compact Cooler
  • Cold plate
  • Battery cooler

Benefits of TMS with heat pump

  • Increased range
  • Increases battery life
  • Fast charging possible
  • Full climate control
  • Comfortable driving experience
  • Environmental friendly refrigerant

Thermal module with Chiller & PTC

Thermal Management System with chiller & PTC cools and heats the battery at various operating conditions. Unlike heat pump that uses ambient heat or waste heat, PTC is an electric heater that generates heat using the power from the battery itself and supplies it to the required components.

AKG Product portfolio for Thermal Management Systems with Chiller & PTC

  • Stacked Shell Cooler (SSC)
  • LightWeight Cooler
  • Compact Cooler
  • Cold plate
  • Battery cooler

Benefits of TMS with Chiller & PTC

  • Increased range
  • Plug & play system for quick integration
  • Complete climate control possible
  • Compact unit with remote mounted condenser enabling assembly flexibility
